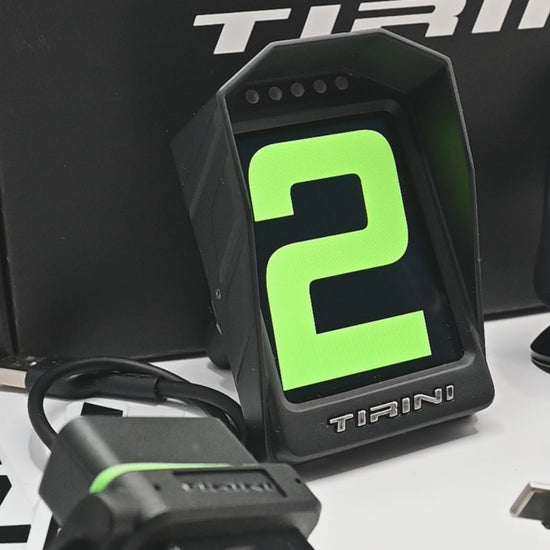

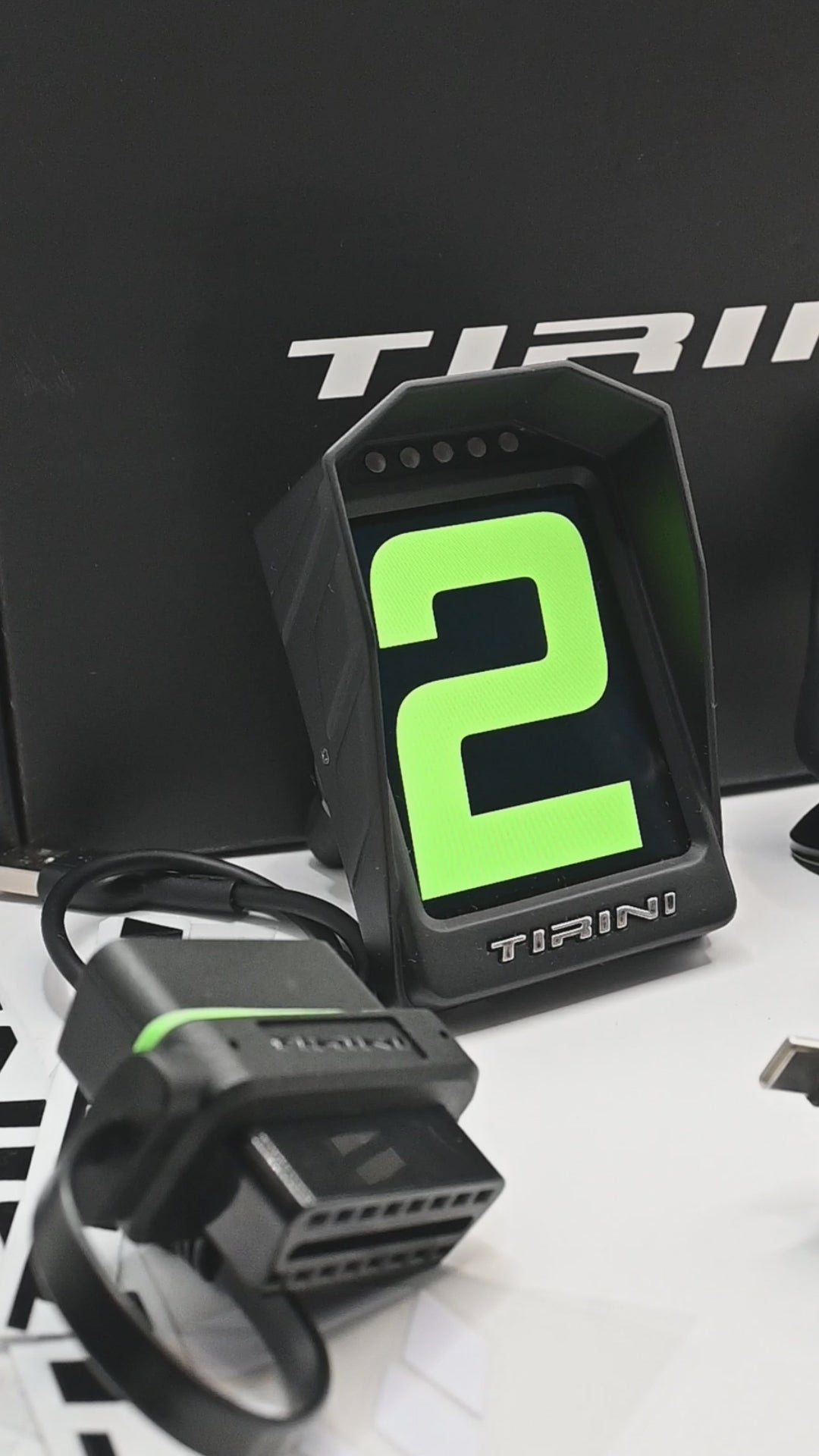

TIRINI DX2 Gear Display & Micro-Dash

DX2 is designed as a fully standalone racing instrument. Vehicle selection, display layouts, shift-light behaviour, colours, brightness, channels and alarms are configured directly from the touchscreen.

Pre-installed profiles simplify installation by loading the required communication method, channels and settings for supported vehicles and ECUs.

A single USB-C connection carries power and communication through the appropriate OBD adapter or direct-CAN harness, keeping the installation compact and easy to move between compatible applications.

No phone, app, online account or wireless connection is required. A computer is only needed for firmware updates, Sim Racing connectivity and analysis of exported data logs.

DX2 CORE

Designed for a simple plug-and-play OBD installation with the essential gear, RPM and shift-light functions.

• OBD connection only
• Real-time gear and RPM display
• P, R, N, D, S and M shifter-position display
• Six- and seven-speed DSG support
• DQ250, DQ381 and DQ500 compatibility
• Five configurable RGB shift lights
• Two configurable RPM shift-light thresholds
• Race and Rally display styles
• Selectable display, gear and shift-light colours
• Automatic display and LED brightness
• Two configurable live engine or gearbox data fields
• Pre-installed plug-and-play vehicle profiles
• Complete touchscreen configuration
• SimHub racing-simulator connectivity

DX2 PRO

Includes everything available with CORE and adds complete live engine and powertrain monitoring for performance and track use.

• Everything included with DX2 CORE

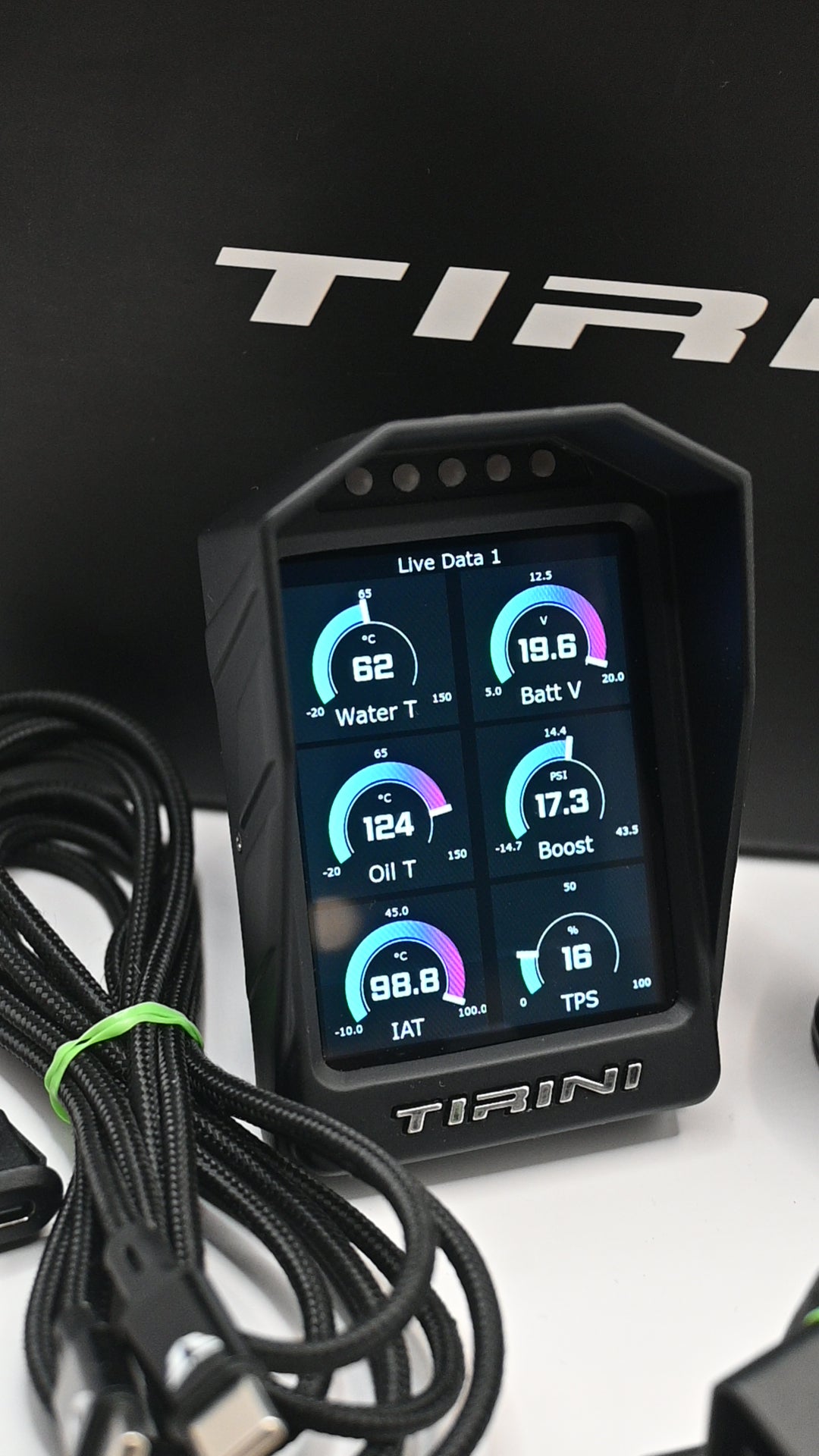

• Live engine and gearbox data gauge pages
• Additional racing display layouts
• Editable alarms and warning thresholds
• Per-gear shift-light configuration
• Launch-control detection
• TIRINI Racing Apps and performance meters
• Additional gauge and channel assignments
• Expanded engine, transmission and drivetrain data
• Direct powertrain CAN connection on selected supported vehicles
• Ultra-fast gear, RPM and live-data response through direct CAN

Available values depend on the selected vehicle profile and may include boost pressure, coolant temperature, intake-air temperature, oil temperature, oil pressure, fuel pressure, throttle position, battery voltage and gearbox temperature.

DX2 TUNER

Includes everything available with CORE and PRO and unlocks the advanced tools required for aftermarket ECUs, custom vehicles, tuners, workshops and race teams.

Pre-installed racing ECU profiles:

• Haltech
• MoTeC
• Emtron

Link ECU, ECUMaster and additional popular racing ECU profiles are currently in development. The supported ECU library will continue to expand through firmware updates.

• Advanced Channels Editor
• Create and edit custom CAN channels
• Configure CAN ID, byte, bit position, data length and endianness
• Configure scaling, offset, units and value conversion
• CAN Bus live monitor and message discovery
• Custom OBD and UDS diagnostic requests
• Gauge Assignment Editor
• Custom vehicle and ECU profile creation
• Receive, decode and display custom CAN data
• Transmit configurable CAN messages
• Programmable touchscreen CAN keypad controls
• Button, toggle and slider-style CAN controls
• CAN logging and data-log export
• Recorded data graphs
• Minimum and maximum value memory
• Analog sequential-gearbox or AUX input
• Custom display profiles and branding

CORE: Essential OBD gear, RPM and shift-light display.

PRO: Complete live-data monitoring and direct powertrain CAN on selected vehicles.

TUNER: Racing ECU support, custom channels, CAN transmission, logging and advanced development tools.

OBD and Direct CAN

DX2 CORE communicates through the vehicle OBD port only. This provides the simplest installation and does not require direct access to the vehicle wiring.

DX2 PRO and TUNER can also connect directly to the powertrain CAN Bus on selected supported profiles. Direct CAN provides substantially faster gear, RPM and engine-data updates for an immediate racing-display response.

The direct CAN flying-lead harness is also suitable for supported aftermarket ECUs and custom motorsport installations.

Aftermarket Racing ECUs

DX2 TUNER includes pre-installed profiles for Haltech, MoTeC and Emtron. Link ECU, ECUMaster and other popular ECU profiles are in development and will be added progressively through firmware updates.

Available channels depend on the ECU model, selected CAN stream and ECU configuration. An ECU may require its broadcast stream to be enabled before data becomes available.

Custom Profiles

TUNER can be configured for vehicles and ECUs that are not covered by an existing profile. Creating a new profile may require CAN documentation, data capture, testing or remote technical development.

Licence Upgrades

All three versions use the same DX2 hardware. CORE can be permanently upgraded to PRO or directly to TUNER, while PRO can be permanently upgraded to TUNER at any time.

The upgrade is activated directly on the existing DX2. The device does not need to be replaced or returned.

Before Ordering

Please confirm that your vehicle, transmission or ECU is listed as supported. If it is not listed, contact TIRINI Racing before ordering to discuss compatibility or profile development.

CAN transmission and custom TUNER configurations must be correctly configured and verified by a qualified person before use.

Vehicle Compatibility

DX2 uses pre-installed profiles developed and tested for specific vehicles, transmissions and ECUs. Available data and functions depend on the selected profile, connection method and ECU software version.

Similar vehicle models may use different diagnostic identifiers, CAN messages, data positions or scaling. A vehicle should only be considered plug-and-play when its exact model, year, transmission and connection method are listed as supported.

Tested & Confirmed Vehicles

The following vehicles and DSG configurations have been physically tested and confirmed with DX2:

• Volkswagen Golf GTI/R MK7 DSG 6-speed and 7-speed — 2014–2020
• Audi A3/S3 MK3 (8V) DSG 6-speed and 7-speed — 2013–2020
• Audi TT/TT RS MK3 (8S) DSG 6-speed and 7-speed — 2015–2020
• ŠKODA Octavia RS MK3 DSG 6-speed and 7-speed — 2014–2020

This confirmed vehicle list is continuously expanding as additional models, transmissions and ECU software versions are tested.

Available channels and direct-CAN functions can vary between vehicle profiles. Select your exact vehicle during purchase or contact TIRINI Racing if your model is not currently listed.

Can’t Find Your Vehicle?

DX2 is not limited to the vehicles currently listed. Most vehicles with accessible OBD or CAN Bus data can potentially be added through direct remote support with TIRINI Racing.

When purchasing DX2 TUNER, new vehicle-profile development and the required remote support are provided completely free of charge.

Compatibility must still be confirmed before purchasing. Contact us with your vehicle model, year, engine, transmission and ECU details so we can check data availability and confirm whether a compatible profile can be created.

Remote development may require access to the vehicle, diagnostic software, CAN data recording or assistance from the customer, workshop or tuner. Compatibility cannot be guaranteed until the vehicle and available data have been reviewed.

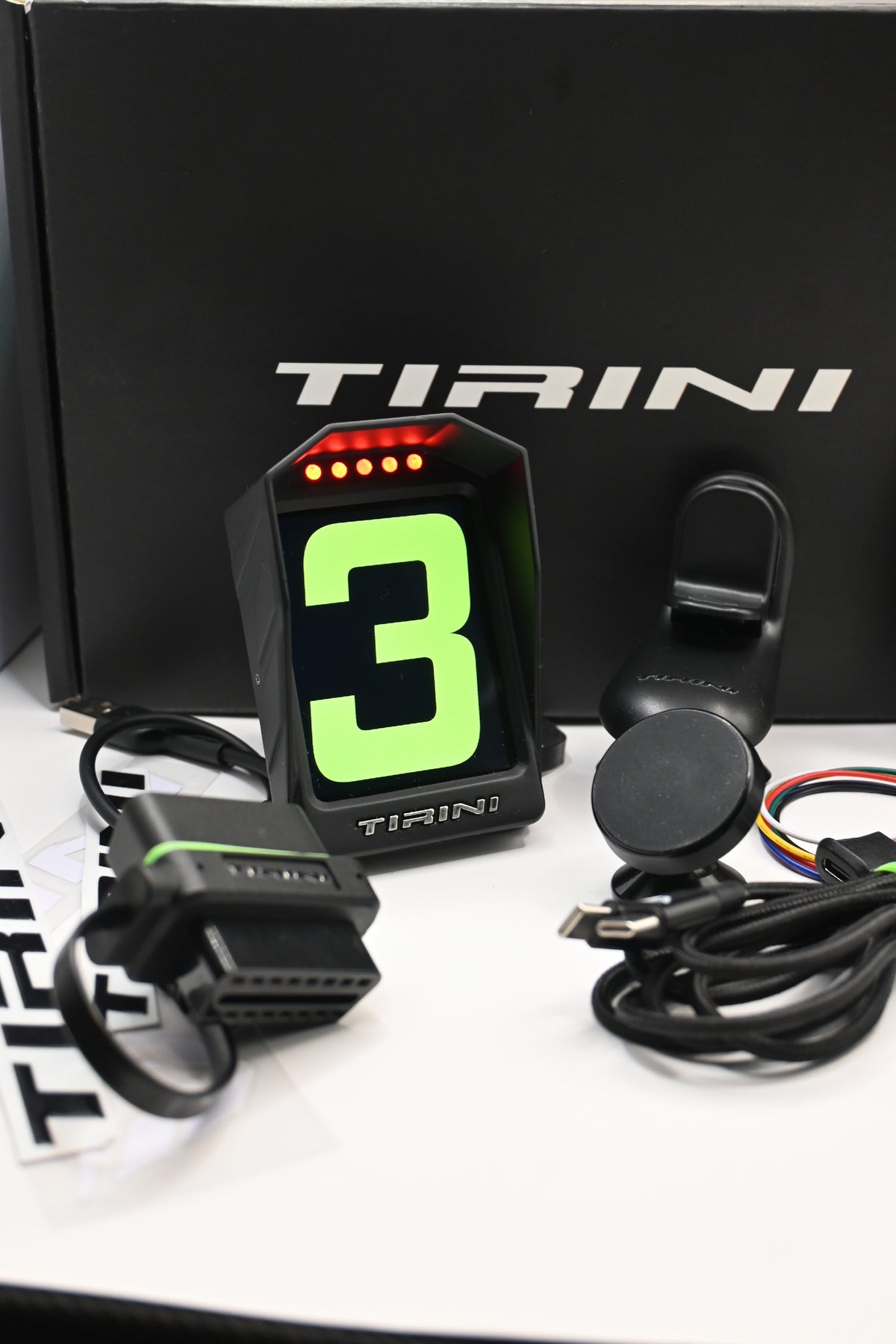

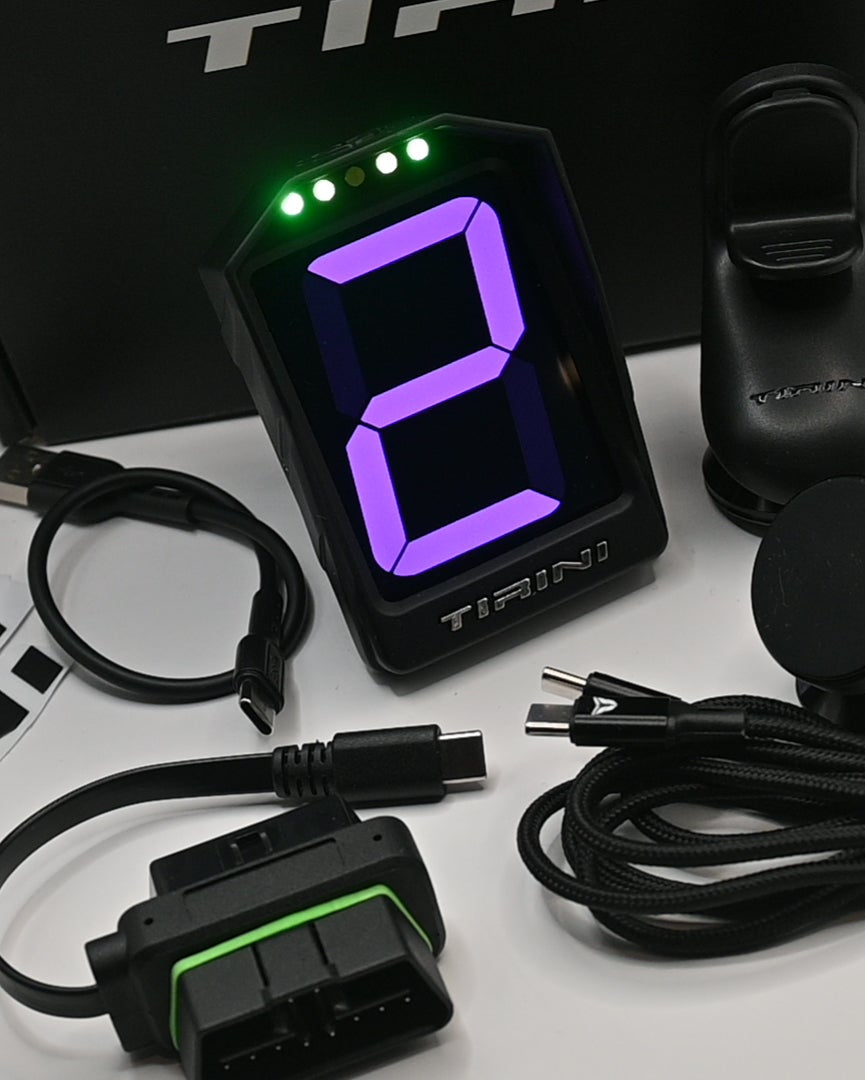

Every DX2 package includes:

• 1x TIRINI DX2 2.8-inch touchscreen display
• Your selected CORE, PRO or TUNER licence pre-installed
• 1x OBD-II splitter ti USB-C adapter for power and communication
• 1x 2-metre high-quality USB-C connection cable
• 1x magnetic mounting holder
• 1x USB-C to 5-wire flying-lead harness for direct CAN Bus installations
• Access to compatible firmware updates
• Digital setup and operating instructions

The OBD adapter provides the standard plug-and-play connection for supported vehicles.

The 5-wire flying-lead harness provides power, ground, CAN High, CAN Low and AUX connectivity for supported direct-CAN, aftermarket ECU and custom motorsport installations.

Some vehicles or ECUs may require an additional vehicle-specific connector, adapter or installation work. Any accessory not specifically listed above is not included.

• Display: 2.8-inch portrait TFT
• Resolution: 480 × 640 pixels
• Refresh Rate: 60 Hz
• Brightness: 800 nits with automatic ambient-light dimming
• Viewing Angle: 70° minimum, vertical and horizontal
• Touch: Capacitive touchscreen
• Processor: 160 MHz STM32 microcontroller
• Shift Lights: Five integrated configurable RGB LEDs
• Enclosure Material: High-performance motorsport-grade engineering resin
• Material Characteristics: Tough, impact-resistant and thermally stable with thermoplastic-like durability
• Heat Tolerance: Up to 90°C
• Surface Finish: Precision-finished matte charcoal black
• Primary Connector: Single USB-C female connector for power and communication
• Operating Voltage: 5–36 V through the appropriate TIRINI cable or adapter
• Maximum Consumption: Approximately 0.5 A at 12 V with the display and LEDs at full brightness
• Standby Consumption: Approximately 0.017 A at 12 V in standby/sleep mode
• Vehicle Communication: OBD, Classic CAN Bus, serial and USB
• Supported Protocols: CANopen and SAE J1939
• CAN Speed: Configurable up to 2 Mbit/s
• CAN FD: CAN FD-ready hardware
• Auxiliary Input: Configurable 0–5 V or 5–12 V input

• Sim Racing: SimHub connectivity through USB
• Configuration: Directly from the DX2 touchscreen
• Firmware Updates: Offline USB firmware-update and recovery system
• Mounting: Compact magnetic mounting holder included
• Dimensions: 58.5 × 85.0 mm
• Thickness: 13.5mm (enclosure side) / 32.2mm (shroud side)
• Weight: 59 g
• Licence Options: CORE, PRO or TUNER; permanently upgradeable

DX2 IS A MOTORSPORT DEVELOPMENT DEVICE FOR RACE USE ONLY.

TIRINI products are not intended, approved or certified for public-road use. They are intended exclusively for race vehicles operated on closed courses or racetracks under the appropriate supervision of qualified technicians or mechanics.

This condition applies whether the product is purchased, discounted, loaned or supplied free of charge for testing or evaluation.

DX2 must never be used as the sole source of information for driving, diagnostics, vehicle control or safety-critical decisions on a public road or highway.

It is the responsibility of the purchaser, tester, installer and user to comply with all applicable local, state and national laws, including vehicle, emissions, insurance and motorsport regulations.

Installation and configuration should only be carried out by a person who understands automotive electrical systems, CAN Bus and OBD communication. Incorrect wiring, configuration, message transmission or operation may damage the engine, transmission, ECU, wiring or other vehicle electronics.

To the maximum extent permitted by applicable law, TIRINI Racing accepts no responsibility for injury, loss or damage resulting from incorrect installation, incorrect configuration, unauthorised modification, unsuitable application, misuse or operation contrary to the supplied instructions.

Nothing in this notice excludes, restricts or modifies any consumer guarantee, right or remedy that cannot lawfully be excluded under the Australian Consumer Law or other applicable legislation.

By receiving, purchasing, installing or using this product, you acknowledge these conditions and agree to use the product only for its intended motorsport-development purpose.

Read the complete Terms and Conditions, Warranty Disclaimer and Limitation of Liability.
